• FreePBX stays stable: you keep routing (Inbound Routes / IVR / Queues) as-is.

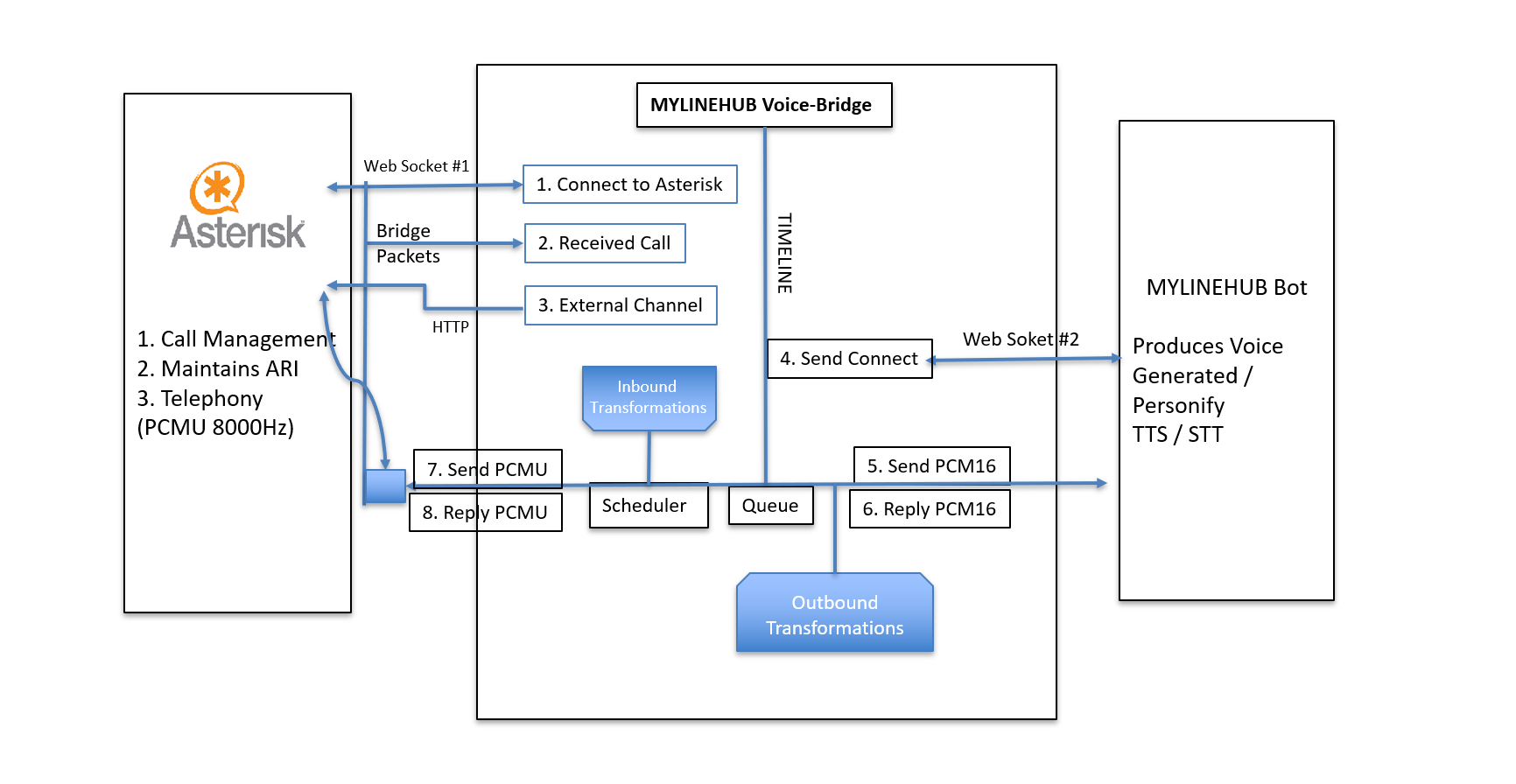

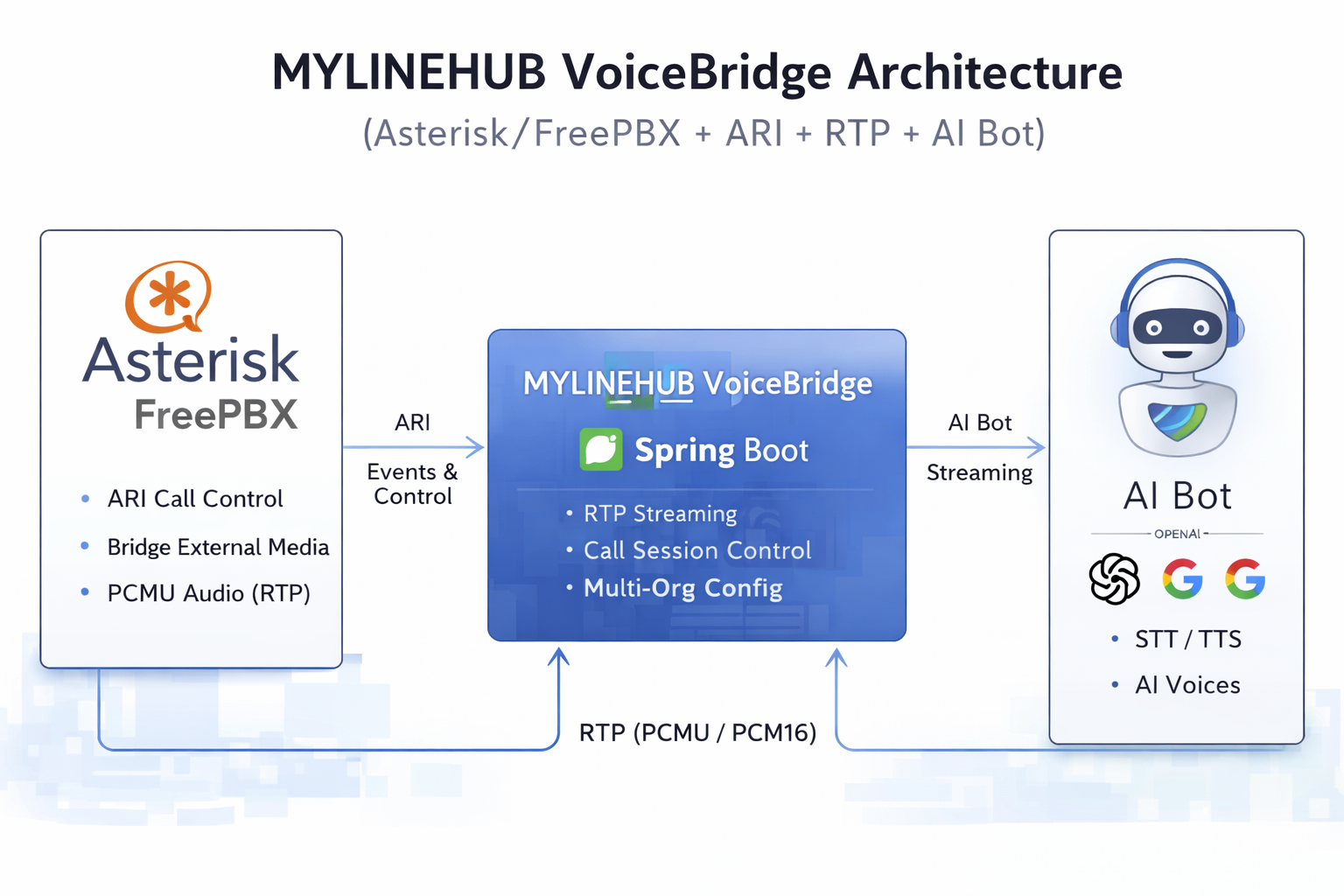

• Voice automation attaches safely: VoiceBridge attaches via Stasis + External Media.
• Real-time AI audio: RTP (telephony) ⇄ PCM16 (AI) ⇄ RTP back into the call.
• Multi-tenant: different Stasis apps (per org) with DB-driven behavior and prompts.

• Enable HTTP in Asterisk (needed for ARI REST + ARI WebSocket).
• Enable ARI and create an ARI user (username/password).
• Confirm you can reach ARI from the VoiceBridge host (curl test).

[general]
enabled=yes
bindaddr=0.0.0.0
bindport=8088

[general]
enabled = yes

[mylinehub]
type = user
read_only = no
password = CHANGE_ME_STRONG_PASSWORD

curl -u mylinehub:CHANGE_ME_STRONG_PASSWORD http://ASTERISK_IP:8088/ari/api-docs/resources.json

There are multiple ways to route to Stasis from FreePBX. Use whichever you prefer operationally:

• Custom Destination → point it to a custom dialplan target that calls Stasis.
• extensions_custom.conf → create a custom context/extension that runs Stasis(APPNAME).
• Direct Dialplan include in your inbound route flow (advanced users).

; /etc/asterisk/extensions_custom.conf
[mylinehub-stasis]
exten => s,1,NoOp(Entering MYLINEHUB VoiceBridge)
 same => n,Stasis(MYLINEHUB_ORG_APP)
 same => n,Hangup()

• Allow ARI port (8088/8089 or whatever your Asterisk uses) from VoiceBridge host.
• Allow RTP port ranges for both Asterisk and the VoiceBridge external media endpoints.
• If NAT is involved, set correct External Address + Local Networks in FreePBX SIP Settings.
• One-way audio is almost always NAT/RTP/port-range mismatch.

• Keep SIP/telephony stable with G.711 PCMU/PCMA.
• VoiceBridge converts telephony audio to PCM16 for AI engines (STT/TTS / speech-to-speech).
• If your trunk negotiates wideband codecs, ensure VoiceBridge path remains consistent (avoid random codec surprises).

• You can change an org’s bot flow without redeploying VoiceBridge.
• You can run multiple orgs on one VoiceBridge instance (safe isolation by app name + session state).
• It supports “same code, different behavior” — ideal for franchise / multi-customer deployments.

(root) — Bootstrapping

• VoiceBridgeApplication — Spring Boot entrypoint; starts web server, scheduling, and initializes beans for ARI + AI + RTP processing.

ari — ARI integration & call control

This package is the “call control engine”. It owns WebSocket event handling and the ARI REST actions used to create bridges, external media channels, and manage call lifecycle.

• AriWsClient — Maintains ARI WebSocket connection, subscribes to events, and routes them to handlers (StasisStart/Hangup/DTMF).
• AriBridgeImpl — Implements the bridge operations: create bridge, add channels, remove channels, cleanup safely.
• ExternalMediaManager/ExternalMediaManagerImpl — Creates External Media channel and binds RTP to the VoiceBridge endpoint; also handles teardown.
• CallerManageService — Higher-level call management helpers (state transitions, safety cleanup patterns).

Think: “ARI is the remote control of Asterisk.” This package is that remote control + safety cleanup.

session — per-call runtime state

A call is not “one variable” — it’s a moving system (channels, RTP ports, peer IP learning, AI state, timers). This package owns that call state reliably.

• CallSession — Central state object: org/stasis app mapping, inbound/outbound channel IDs, RTP in/out ports, learned peers, timestamps, flags (recording/barge-in).
• CallSessionManager — Creates, stores, and destroys sessions; indexes sessions by ARI channel IDs; ensures cleanup on hangup.

If you debug “wrong audio went to wrong caller”, you debug session mapping first.

rtp — RTP endpoints, port allocation, symmetric RTP

This package is the “audio transport layer”. It decides which UDP ports to open, how to learn the peer, and how to write/read RTP packets. It is the most common place where NAT and one-way audio bugs appear.

• RtpPortAllocator — Allocates RTP ports safely across concurrent sessions (no collisions).
• RtpSymmetricEndpoint — Handles “learn peer” vs “fixed peer” behavior (important behind NAT).
• RtpPacketizer — Converts raw audio frames into RTP packets (sequence/timestamp) and parses inbound RTP.
• RtpPacket/RtpHeader (if present) — Represents RTP structure and helpers.

Key idea: telephony RTP is continuous 20ms-ish packets; VoiceBridge must keep timings stable or audio becomes robotic/choppy.

audio — codecs, framing, conversion utilities

Asterisk often delivers G.711 (PCMU/PCMA). AI engines usually want PCM16. This package performs those conversions and ensures frames align properly.

• MuLaw — G.711 μ-law encode/decode utilities (telephony standard).
• ALaw — G.711 A-law encode/decode utilities (alternate region/codec).
• AudioTranscoder — Converts between PCMU/PCMA and PCM16; may normalize frame sizes.
• AlignedPcmChunker/PcmChunker — Ensures PCM is cut into consistent chunk sizes for streaming stability.
• CodecFactory — Chooses codec based on configuration / negotiation policy.

dsp — audio processing pipeline

Optional processing: echo cancellation, noise suppression, 10ms framing (WebRTC-Audio-Processing style). This improves STT accuracy and makes TTS sound cleaner on calls.

• Pcm10msFramer — Converts PCM into 10ms frames (common DSP requirement).
• WebRtcApmProcessor — DSP processor wrapper (AEC/NS/AGC style processing).

ai — AI bot client integrations

This package owns how VoiceBridge speaks to AI: connect, stream audio, receive audio, reconnect safely, and emit events back to the call engine.

• RealtimeAiClient/RealtimeAiClientImpl — Streaming client for realtime engines (speech-to-speech / STT+TTS pipelines).
• GoogleLiveAiClientImpl — Google Live voice client integration (if enabled in your build).
• ExternalBotWsClientImpl — Generic WebSocket-based bot connector (your own bot server).
• AiClientFactory — Chooses AI provider implementation per org/config.

This is where “voice personality”, “system instructions”, and “provider selection” become real behavior.

queue — outbound audio pacing & jitter control

AI audio is often returned in bursts. Telephony audio must be played in steady time. This package prevents “fast playback”, “robot burst”, and “stutter”.

• OutboundQueue — Buffer queue for bot audio frames; supports backpressure and safe consumption.
• PlayoutScheduler — Time-based scheduler that releases frames at the correct interval (crucial for natural speech).

barge — barge-in detection and control

Barge-in means: if the caller speaks while the bot is talking, stop bot audio instantly and return to listening. This is essential for a “natural conversation” feel.

• AudioEnergy — Computes speech energy / simple VAD-like signal.
• BargeInController — Policy engine: thresholds, stop conditions, switching bot-to-listen mode.

recording — call recording and mixing

Recording is not just “write one stream”. You may record caller + bot separately, or mix stereo/mono. This package owns those writers/mixers safely.

• CallRecordingManager — Coordinates when recording starts/stops and where files are written.
• MonoWavFileWriter / StereoWavFileWriter — Writes WAV audio properly with headers and correct sampling.
• JavacppFfmpegPlatformMixer — Mixer implementation for combining streams if needed.

service — business services around calls

This package converts “audio automation” into real product outcomes: completion status, reporting, transfers, CRM linkage, and history ingestion.

• CallCompletionService — Marks call outcome, completion reason, next-step actions.
• CallTransferService — Transfers calls to dialplan/agents; manages timing and safety (avoid orphan bridges).
• CallReportingService — Aggregates runtime metrics/logs and stores reporting.
• CallHistoryIngestService — Persists call events/segments for analytics, billing, and CRM.

api — internal/admin REST endpoints

Operational endpoints for admins and internal systems: stasis app admin, call history retrieval, health hooks. These endpoints help your CRM/ops manage live runtime without SSH.

• ApiController — Basic API entry endpoints (health/ops hooks depending on implementation).
• StasisAppAdminController — Admin endpoints for stasis app configs/instructions.
• InternalCallHistoryController — Call history retrieval / internal analytics endpoints.

models / repository / dto — data model layer

These packages represent the “data backbone” for multi-org configs and call history. They define JPA entities, repositories, and DTO conversions used by services/controllers.

• StasisAppConfig — Per-app runtime configuration (org + app mapping, feature flags, bot provider selection).
• StasisAppInstruction — Per-app instructions/prompts (system instructions, personality, scripts).
• Repositories — Load configs/instructions and store call history/errors with Spring Data JPA.
• DTOs — Convert runtime session → CRM/billing objects (CDR-style records).

config — Spring configuration and runtime properties

Centralizes configurable behavior: ports, scheduling, API docs, secondary HTTP, and property binding. This keeps “deployment differences” out of code.

• ConfigProperties — Strongly-typed config binding (reads application-*.properties).
• SchedulingConfig — Scheduler thread configuration (playout timing and periodic tasks).
• SecondaryHttpPortTomcatCustomizer — Optional second HTTP port exposure for internal traffic.

ivr / agi — IVR helpers and dialplan integration

Provides IVR/AGI bridging helpers for advanced dialplan flows (when you want to interact with Asterisk dialplan logic more deeply).

• IvrService — IVR flow helpers (DTMF, menu actions, step transitions).
• MinimalAgiExample — Reference implementation showing how AGI can be used if needed.

billing / crm — mapping calls to business outcomes

Converts raw telephony sessions into “business data”: duration, disposition, cost, CRM records, and tracking. This is where you implement monetization logic and reporting outputs.

• CallBillingInfo — Holds computed billing details.
• CdrDTO — Call-detail record representation for CRM.
• CallSessionToCdrDTO — Mapping logic: session → CDR fields.

util — utilities used everywhere

• OkHttpLoggerUtils — HTTP client logging helpers (useful while debugging AI streams).
• PcmUtil — PCM helper utilities (normalize, chunking helpers, conversions).
• SystemJwtTokenHolder — Internal JWT holder for service-to-service auth (if enabled).

• Wrong ARI credentials or ARI not enabled.
• FreePBX/Asterisk HTTP bind not reachable from VoiceBridge.
• Inbound provider IP does not match identify (classic PJSIP issue).

• NAT External Address / Local Networks incorrect in FreePBX.
• RTP port range blocked in firewall.
• Symmetric RTP not handled (peer learning needed).

• Missing scheduler pacing (frames played as soon as they arrive).
• Wrong frame sizing (PCM chunk mismatch).
• Codec conversion mismatch (PCMU vs PCM16 alignment).
